CT-1

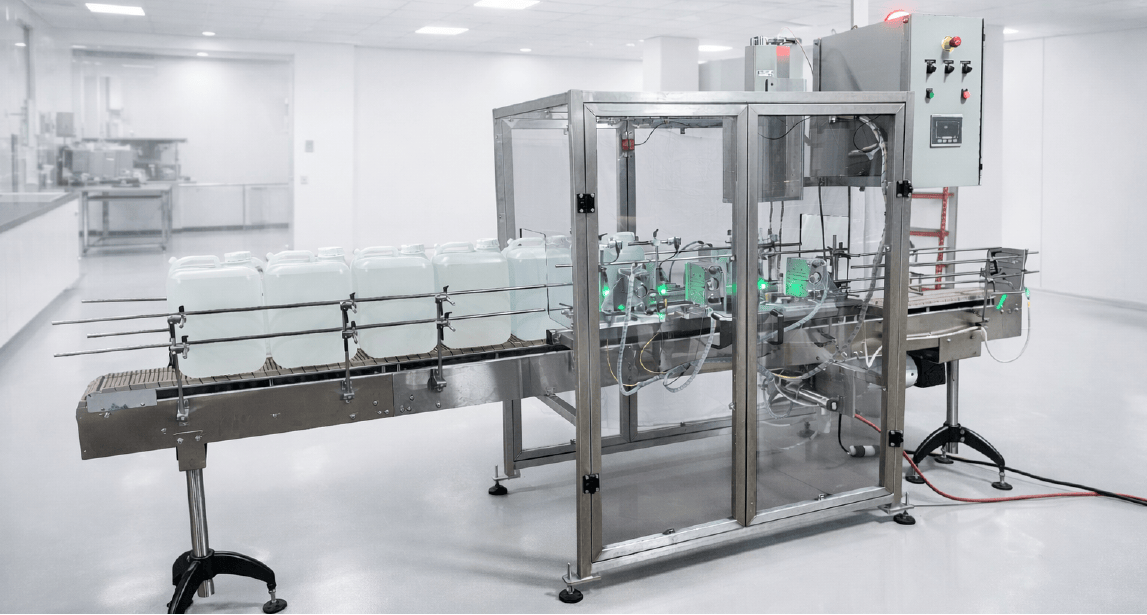

The Packaging Dynamics Servo-Driven Cap Retorquing System provides precise torque control at production rates of up to 24 containers per minute, depending on the application. Its dual-axis linear servo system delivers consistent, repeatable cap application across different container formats.
Quick-change cap chucks and recipe-based configurations help minimize downtime between products. Allen-Bradley controls support automation and system integration, while stainless steel construction and fully enclosed, interlocked guarding provide durability and operator protection.
Specifications
| Container | 2 oz to 5 gallons |
| Cap size | 24mm to 63mm |
| Construction material | Stainless steel |
| Production rate | Up to 24 containers per minute, depending on application |
| Overall dimensions | 48″ x 60″ |
| Air consumption | 2–3 CFM at 80–90 PSI |
| Electrical | 220 or 440 VAC input |
| Weight | Approximately 650 lbs. |
| Motion platform | Dual-axis LinMot linear servo system |
| Conveyor configuration | Available with or without a conveyor system |
Features
- Servo-driven capping heads with precision positioning
- Recipe-based motion and torque profiles
- Modular cap chuck tooling system
- Tool-less cap chuck changeover
- Allen-Bradley CompactLogix PLC
- Allen-Bradley color touchscreen HMI
- Allen-Bradley proximity sensors with quick-disconnect connectors
- Festo pneumatic components
- Stainless steel structural frame and components
- Fully enclosed Lexan guarding
- Interlocked swing-out doors at the front and rear
- Integration with plant-wide control systems and data infrastructure
Applications
- Chemicals and other industrial liquids
- Food and beverage packaging
- Pharmaceutical and personal care products
- Specialty and custom container formats
Options
- Configuration with or without a conveyor system
- Timing screw indexing
