The Packaging Dynamics, Ltd. Portable Single Head Piston Filler PF-1RV has been engineered to provide an economical and convenient way for filling small production runs of today’s thick or thin liquid products with high accuracy. This machine is a pneumatically controlled volumetric piston filler and only requires compressed air. To adjust the dispensing volume, close the ball valve on the inlet side of the regulator, turn the volume adjustment knob on the rear of the machine and then open the inlet valve. Place a container under the nozzle and depress the foot pedal. At the completion of the filling cycle, the cylinder will retract and recharge the piston. A filled container can then be moved along manually. This filler can also be used in conjunction with a slide plate, portable cart, powered conveyor, additional pistons and/or fully automatic operation.
conveyor unscrambler with stainless steel loading zone
in line positive closure SLA liquid filling machine
in line bottom fill positive closure SLA liquid filling machine
in line positive closure SLA liquid filling machine
The Packaging Dynamics, Ltd. Twin Bottle Cleaning System AC-02/PAC-02 is designed to clean containers utilizing compressed air and vacuum. Both are easy to use and provide the versatility to clean a variety of different styles and container sizes. Independent air and vacuum systems allow the removal of many kinds of contaminants from cardboard and glass, to plastic and small rocks. The amount of air used to clean containers is adjustable as well as the cycle time. An air indicator, located on top, tells the operator the cycle status. It appears green during the cycle and black when complete. portable bottle cleaner for liquid filling machines
standard stainless steel conveyor with turn section
CLICK ON CODE TO REGISTER FOR FREE

About Us

Packaging Dynamics, Ltd. is proud to be celebrating over 40 years as a full service manufacturer of Liquid Filling Equipment and Machinery.  We offer our customers a management team with over 55 years of industry experience, a full service machine shop and a design and engineering staff.  Our skilled craftsman are dedicated to producing the highest quality equipment which has been our hallmark since 1984.

Packaging Dynamics, Ltd. designs, engineers, and manufactures all of its own filling machine nozzles and customer specific custom and protype nozzles. We also supply ancillary equipment including change parts, conveyors, cappers, labelers, line dividers, unscrambler, accumulator tables, accessories, and custom PLC programming, for full line integration.

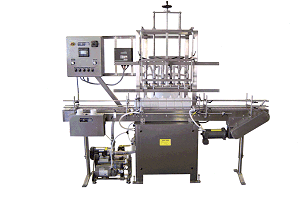

Overflow automatic liquid filling machine. Liquid Filling Machine SLA is a proven state of the art machine which features Allen Bradley Programmable Logic Controls PLC and operator interface.This machine is engineered to have the flexibility of filling containers as small as 2 ounces and as large as 2 1/2 gallon (F-Style) at rates as high as 80 containers per minute. Standard features include a product pump, reservoir, pressure manifold, AB photo sensors and a variable speed conveyor and drive system. Multi stage filling for those hard to fill foamy and viscous products. Automatic In Gate and Out Gate cylinders control container flow into and out of the filling station. The SLA’s ease of operation provides a minimum change over time and years of trouble free service. Custom line layouts and complete line integration are also available.
Automatic Liquid Filling Machines
The Packaging Dynamics, Ltd., Semi Automatic Portable Cart Overflow Filler SL-4P is an economical fill to level system designed for small production runs. It has been engineered for ease of operation with a roll around care which provides a greater range of portability and quick change over features. It’s non-electric pneumatic design can be used safely in hazardous locations. The SL-4P can be used for low production runs, cleaned and quickly stored or transported effortlessly to another plant location for use. The SL-4P Liquid Fillers are currently being used in the pharmaceutical, beverage and chemical industries. The Packaging Dynamics, Ltd. Semi Automatic Fill to Level Liquid Filler was engineered for manual and incase applications. Standard features include Stainless steel machine, 6 foot roller conveyor, Stainless steel frame, product pump, supply tank and Stainless steel contact parts. The operator pushes the manual container stop out, moves the containers to be filled along the roller conveyor surface into position under the nozzle bar assembly and pushes the cycle start button. Upon completion of the fill cycle the nozzle bar assembly automatically returns to the starting position. It’s as simple as that. Included with the machine’s standard features are quick change nozzle adjustment and quick change conveyor rail adjustments handles that aid in reducing expensive change over periods.
Semi Automatic Liquid Filling Machines
The Packaging Dynamics Ltd., Fully Automatic Rotary Filler R10, R20 has been engineered to accommodate higher speed production, achieving rates as high ranging as small as 2 ounces to as large as 1 1/2 gallons depending on machine size, container size and materials. This Rotary Filler can easily be integrated with existing sorting and capping machinery, featuring mechanical inter-locking devices that make operation effortless. Additional mechanical interlocks can be incorporated into the construction to halt machine operation in the event of a jam. New re-designed drive system allows the machine to run at the higher speed requirements while maintaining a smooth, quiet and trouble free operation. Standard equipment includes a variable speed 12 foot conveyor system, product pump and tank. The control package contains a Nema 4 enclosure designed for 230VAC operation that can be washed down easily after each production run. Easy change over and cam adjustments help provide for a minimum of down time.
Rotary Liquid Filling Machines
The Packaging Dynamics, Ltd. Portable Single Head Piston Filler PF-1RV has been engineered to provide an economical and convenient way for filling small production runs of today’s thick or thin liquid products with high accuracy. This machine is a pneumatically controlled volumetric piston filler and only requires compressed air. To adjust the dispensing volume, close the ball valve on the inlet side of the regulator, turn the volume adjustment knob on the rear of the machine and then open the inlet valve. Place a container under the nozzle and depress the foot pedal. At the completion of the filling cycle, the cylinder will retract and recharge the piston. A filled container can then be moved along manually. This filler can also be used in conjunction with a slide plate, portable cart, powered conveyor, additional pistons and/or fully automatic operation.
Portable Liquid Filling Machines
Packaging Dynamics Ltd.’s Conveyors come in a variety of custom configurations and lengths. Supplied with Baldor variable speed drive, each conveyor includes table top chain or belt and standard 110 / 220 VAC supply voltage. Each conveyor contains adjustable stainless steel guide rails, stainless steel end cap guards, and adjustable height stands with foot pad levelers. Conveyors can be equipped with Transfer Plates, Product Diverters, Bi-Directional and Serpentine Accumulators. Stainless Steel construction provides for ease of cleaning with a minimum down time. Optional configurations include 90 degree and 180 degree turn sections. Systems can be made with Nema 4 or explosion proof electrics.
Custom Conveyors
Packaging Dynamics Ltd.’s Unscramblers are engineered to provide an organized avenue for feeding containers to our filling machines. Coupled with UHMW guide arrangements, containers can be placed on the table surface and they will be correctly delivered to the filling line. Packaging Dynamics, Ltd.’s Accumulators have proven to be a convenient means of collecting and removing filled containers from the filling line in an organized fashion, making it easier to organize the product. Our Unscramblers and Accumulators are constructed of stainless steel which provided for easy cleanups with a minimum amount of down time. The variable speed design provides easy timing with the filling line. They can be manufactured with Nema 12, Nema 4 or explosion proof electrics. Transfer plates and Dump tables are also available.
Accumulators, Unscramblers & Bi Directional Tables
sample overflow style nozzles PVC and Stainless Steel For Liquid Filling Machines Centering devices. Stainless Steel 316L Construction, Gum Rubber, Neoprene Rubber, Viton Rubber, EPDM Rubber, Silicone Rubber, Viton o rings seals, product and vacuum ports, micro adjusters, adaptable mounting heads for other mounting styles, Kynar, sanitary inlet and outlet fittings. Hastelloy, Titanium, Positive Air cylinder shut off, extending and retractable center rod. high venting for viscous product fills, anti foam tube port, 4 hole, single hole, clean in place design, dual liquid port, sealing washers. Polypropylene
Custom Nozzles
The Packaging Dynamics, Ltd. Twin Bottle Cleaning System AC-02/PAC-02 is designed to clean containers utilizing compressed air and vacuum. Both are easy to use and provide the versatility to clean a variety of different styles and container sizes. Independent air and vacuum systems allow the removal of many kinds of contaminants from cardboard and glass, to plastic and small rocks. The amount of air used to clean containers is adjustable as well as the cycle time. An air indicator, located on top, tells the operator the cycle status. It appears green during the cycle and black when complete. portable bottle cleaner for liquid filling machines
Portable Bottle Cleaning Machines
assorted plastic accessories for nozzles and liquid filling machines. Cups, micro adjusters, centering devices, pucks for liquid filling machines
Liquid Filling Machine Accessories
