SL-4P Series

Our Semi-Automatic Portable Cart Overflow Filler is an economical fill-to-level system designed for small production runs. The roll-around cart design provides excellent portability and fast changeovers.

Its non-electric, pneumatic design allows safe operation in hazardous environments. The system is ideal for low-volume production and can be easily cleaned, stored, or transported to other plant locations.

These fillers are commonly used in pharmaceutical, beverage, and chemical applications.

Specifications

Container size	2 oz to 2½ gallons
Nozzles available	2 to 8
Construction	Stainless steel / aluminum

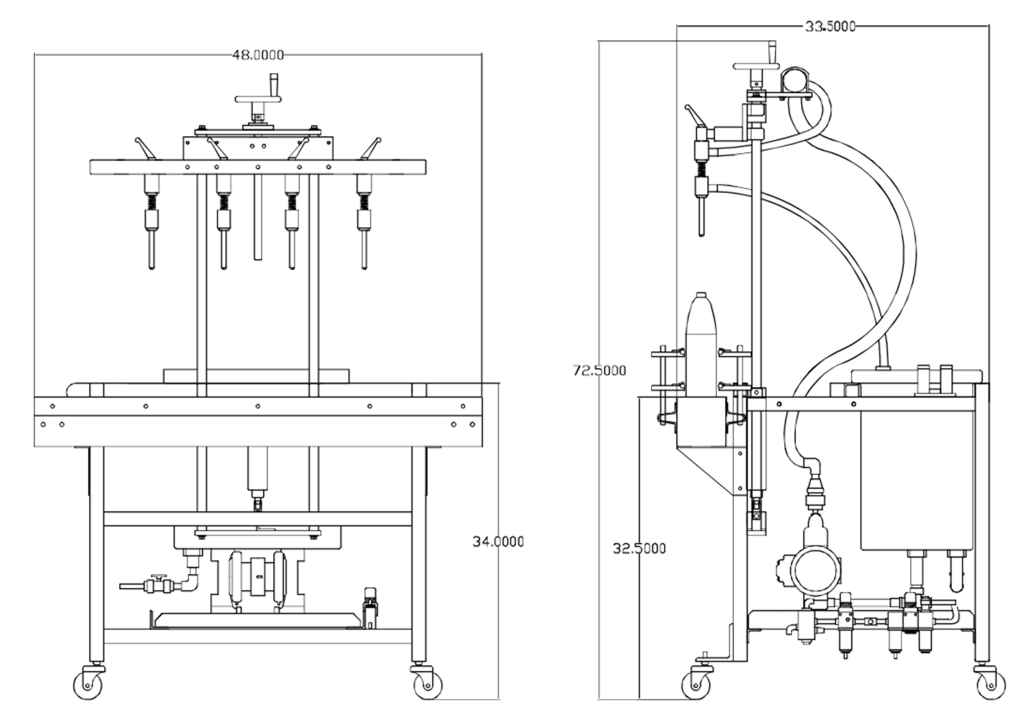

Overall dimensions	72.5″ H x 38.5″ W x 27.5″ D (SL-4P cart model)
Air consumption	6 to 8 scfm
Weight	Approximately 140lbs (SL-4P card model)
Controls	Manual container stop, pneumatic pump timer, pneumatic dwell time, manual directional valve with automatic return
Production rate	Subject to product and container review
