Designed and engineered for economy

SLS-PC Series

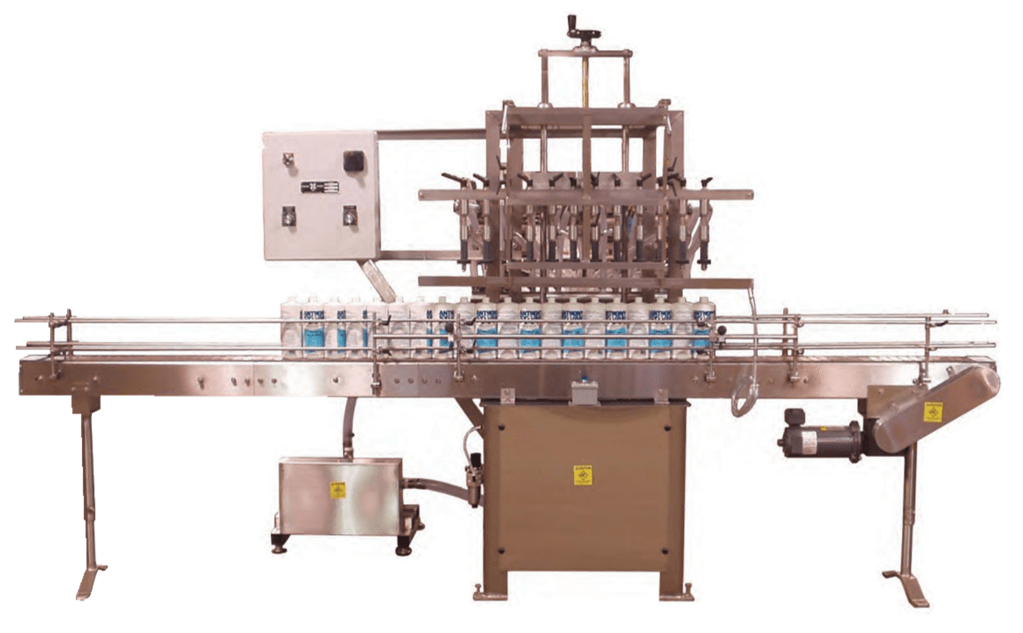

Our Semi-Automatic Fill-to-Level Liquid Filler with Power Conveyor provides an economical solution for liquid filling applications.

Standard features include stainless steel construction, a 10-foot powered conveyor, product pump, supply tank, and stainless steel contact parts. Quick-change nozzle and conveyor rail adjustments are included to minimize changeover time.

The operator extends the manual container stop and starts the conveyor, moving containers into position. Pressing the start button initiates the fill cycle. The nozzles descend to fill the containers and automatically return to the up position once complete.

After filling, the conveyor resumes movement and the operator retracts the container stop.

Specifications

Container size	2 to 2½ gallons
Nozzles available	4 to 12
Construction	Stainless steel

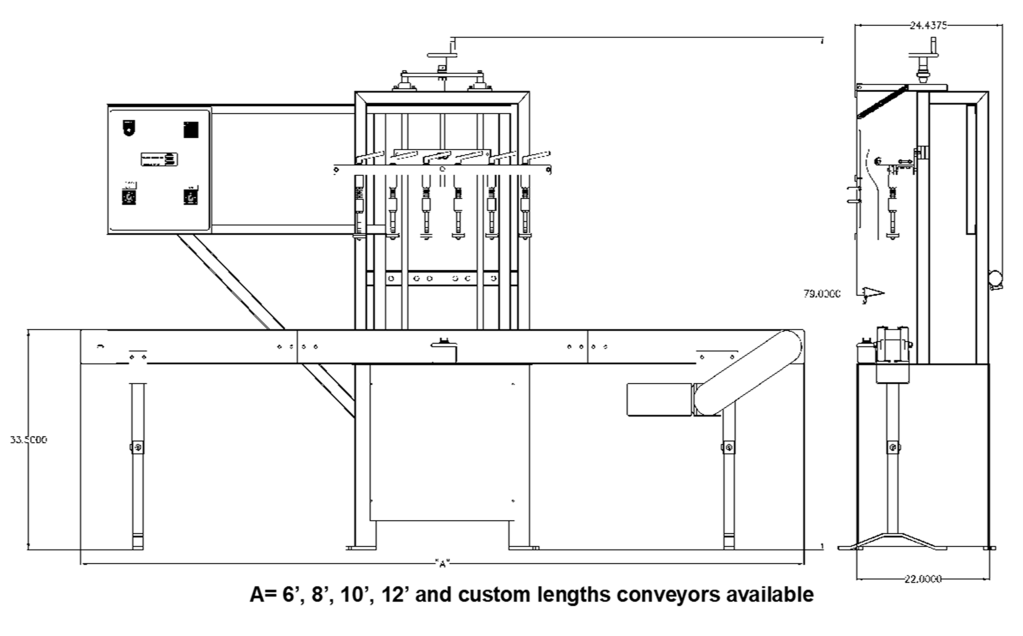

Overall dimensions	79″ height x 64″ to 34.5″ width (excluding gravity tank)
Air consumption	8 to 10 scfm
Electrical	110V AC / 1 or 3 Ph/ 60 Hz
Weight	Approximately 700 lbs.
Production rate	Operator dependent

Features

• Semi automatic filling
• Stainless steel frame and conveyor
• Diaphragm pump
• Supply tank
• Nema 4 control box
• Stainless steel contact parts
• Fill-to-level system
• Quick change rail adjustment
• Quick change nozzle adjustment
• Power conveyor system
• Mechanical drip tray

Options

• Stainless steel tanks
• Cell coat finish
• Explosionproof construction
• Splash guard
• Bottom feed nozzles
• Centering devices
• Sanitary connections
• Explosion proof electrics
• Automatic bottle indexing and logic control
• All plastic construction (acid)
• 110V or 230V AV operation
• Product mixer
• Stainless steel transfer plates
• Vacuum system
• Gravity feed system
• Fiber glass resin coating
• Incase filling
