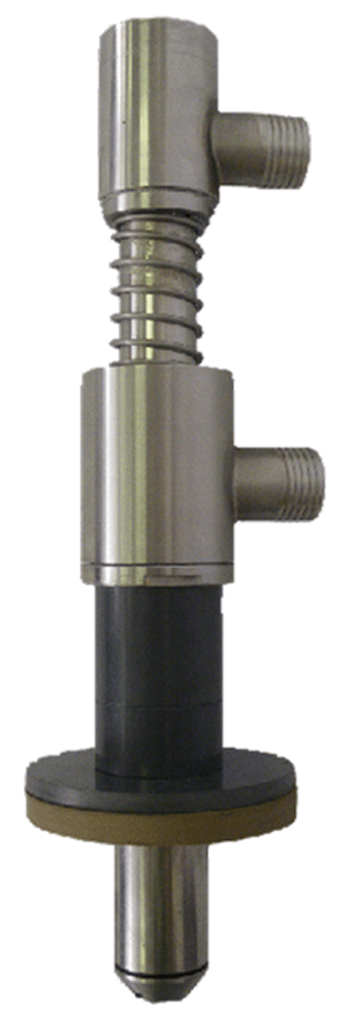

Our Pressure Gravity Fill-To-Level Nozzle works best with thin to medium-viscosity products and delivers typical fill accuracy of ±1%. Constructed from 316 stainless steel with Viton O-rings, with other material options available upon request.

This nozzle works well with most rigid bottles that provide a solid sealing surface.

Compatible fillers include:

• Automatic Fill to Level (Overflow) Filler SLA
• Automatic Rotary Liquid Filler (R10, R20, R30 Series)
• Semi-Automatic Overflow with Powered Conveyor (SLC)
• Semi-Automatic Overflow Portable Cart (SL-4P)
• Semi-Automatic Overflow with Roller Conveyor (SLS)

Typical sizes: ¼” through 1½”
Inlet and outlet port sizes: ⅜” through 1″, barbed or sanitary

Features

• Viton O-rings
• 2″ sealing washers
• Full set of graduated spacers
• Single, two, four, or anti-foam liquid port
• 316 stainless steel contact parts

Options

• Centering devices
• Micro-adjusters
• High venting for viscous products
• Anti-foam tube port, 4 hole, single hole
• Adaptable mounting heads for other mounting styles
• Sanitary inlet and outlet fittings
• Clean in place design

Optional building materials

• PVC/CPVC
• Polypropylene
• Kynar
• Hastelloy
• Titanium

O-ring types

• Viton
• Buna
• EPDM
• Kalrez

Sealing washer types

• Gum rubber
• Neoprene rubber
• Viton rubber
• EPDM rubber
