Unscrambler & Accumulation Tables
(Specifications Page)

Unscramblers & Accumulators by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

Unscramblers & Accumulators by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

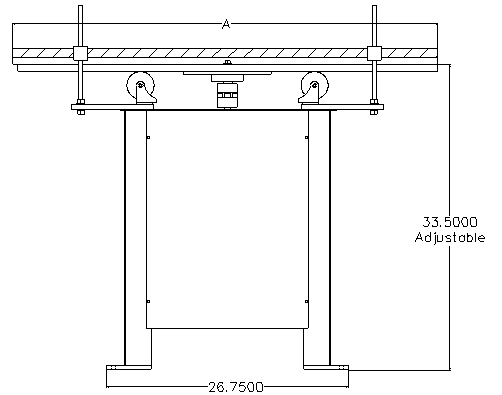

A= 36�, 48�, 60�

Features
No tools required for change over. Adjustable for many container sizes. Speed adjustable to any Conveyor. UHMW rails to avoid scratches on containers. Nema 12 electric controls.	Explosion proof controls available. 110v AC supply voltage 220VAC Supply available. Stainless Steel Construction

Options
Plastic table tops Nema 4 electrics Explosion-proof electrics	Stainless steel Transfer plates 220v AC supply voltage Dump table (Unscrambler)

Specifications

Description
Container Size Range :	2 oz�2 1/2 gal
Drive motor :	90 v DC 1/15 hp
Controls :	KB Electronics SCR drives
Construction Material :	Stainless steel with guide rails and container guides
Overall Dimensions :	Varies between 36� to 60�
Electrical Requirements :	110v AC / 1� / 60 Hz
RPM :	0 to 6.5 rpm
Weight :	Varies between 85 to 150 lbs model dependant
