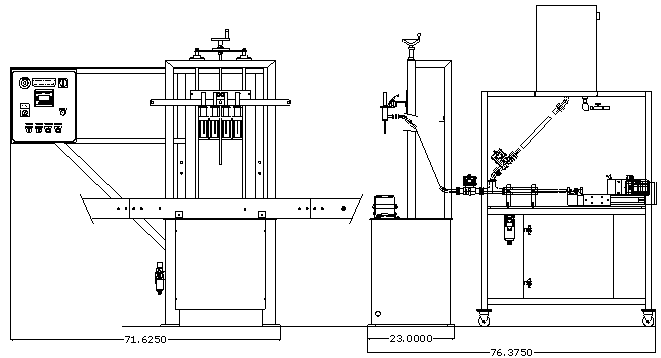

Servo Driven Straight Line Piston Liquid Filler
(Specifications Page)


Servo Driven Straight Line Piston Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.



Features

  • Servo Drive Positive Displacement System
  • Semi & Fully Automatic Versions
  • Stainless Steel Frame & Conveyor
  • AB PLC & Interface Controller
  • Supply Tank
  • Nema 4 Control Box
  • 304 Stainless Steel Contact Parts
  • 10 Foot Conveyor

  • Quick Change Rail Adjustment

  • Quick Change Nozzle Adjustment

  • 110/220 VAC Operation

  • Bottom / Top Feeding Capabilities



Options

  • 316 Stainless Steel Contact Parts
  • Stainless steel 20 - 40 Gallon tank
  • Nema 4 or Explosion Proof Construction
  • Nozzle Drip Tray
  • Splash guard
  • Bottom feed nozzles
  • Centering devices
  • Chemical Resistant Finishes
  • Roller or Side Plate Conveyors
  • Stainless steel transfer plates
  • Product Mixer
  • Air Pressure Container Cleaner
  • Star Wheel Indexing

Specifications

Description


Container Size Range: ¼ oz to 1 gallon (F-Style)
Nozzles Available: 1 to 12
Controls:

Allen Bradley PLC and Operator Interface

Production Rate:

20 to 100 containers/minute depending on containers

Construction Material:

Stainless steel

Overall Dimensions: 79”H x 72” to 102”W x 76”D
Air Consumption: 4 to 6 scfm
Electrical Requirements:

220v AC / 3Ø / 60 Hz

Weight: Approximately 600 lbs.
