Semi-Automatic Fillers
(Specifications Page)

Semi-Automatic Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

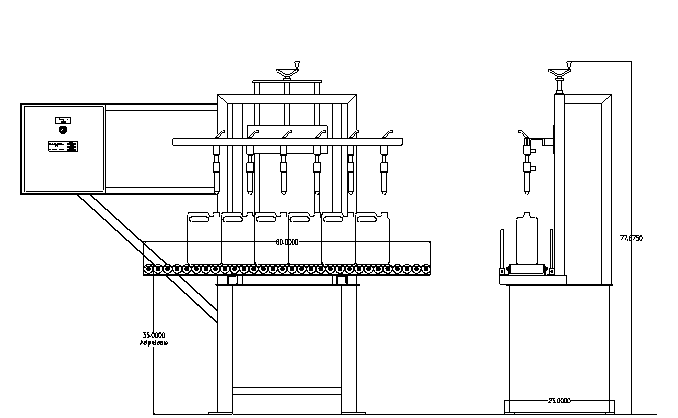

  • A = 6 ft, 8 ft, 10 ft, 12 ft and custom conveyor lengths are available
  • B = 79.00”
  • C = 34.5”
  • Features

    • Stainless steel contact parts
    • Fill to level system
    • Quick change rail adjustment
    • Roller Conveyor system
    • Semi-Automatic filling
    • Stainless Steel Frame & Conveyor
    • Diaphragm pump
    • Stainless steel supply tank
    • Electrical or Pneumatic control package




    Options

    • Tanks & Pumps for application
    • Gravity or Pressure Systems
    • Epoxy resin and/or Teflon coating for acid resistant construction
    • Splash guards
    • Product Mixer
    • Vacuum System
    • Incase Filing
    • Bottom feed nozzles
    • Nema 4 or Explosion Proof Electrics
    • 110V or 230v AC operation

    Specifications

     Description


    Container size: 2 oz to 5 gallons
    Nozzles available: 4 to 12
    Construction: Stainless Steel (standard)
    Overall dimensions: 79”H x 64”W x 34.5”D (excluding gravity feed tank)
    Air consumption: 8 to 10 scfm
    Weight: Approximately 700 lbs.
