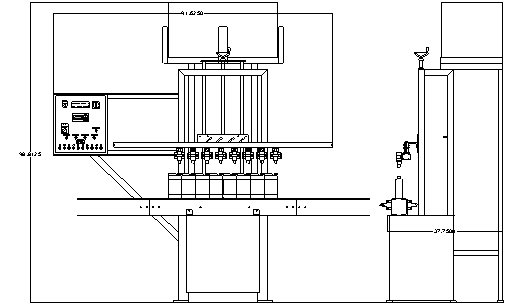

Fully Automatic Time Gravity Filler
Fully Automatic Time Gravity Liquid Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

Features
  • Fully-Automatic Control Package
  • Stainless Steel Frame & Conveyor
  • Centrifugal Pump
  • Polypropylene Supply tank
  • Nema 4 Electrics
  • Stainless Steel & FDA Contact Parts
  • Powered Conveyor System
  • Quick Change Rail Adjustment
  • Quick Change Nozzle Adjustment
  • 115 VAC Operation


Options
  • Stainless Steel Tanks
  • Explosion-proof construction
  • Incase Filling
  • Bottom fill nozzles
  • Centering devices
  • Sanitary connections
  • 220v AC operation
  • Drip Tray
  • Stainless steel transfer plate
  • Ceilcoat Fiberglass Resin Coating
  • Ceilcoat Epoxy Finish
  • Splash guard

Specifications

Description


Container Size: 0.5 oz to 2.5 Gallon Containers
Nozzles Available: 1 to 12
Construction: Stainless Steel
Overall Dimensions: 99”H x 38”W x 92”D (Including Gravity Tank)
Air Consumption: 4 to 6 scfm
Weight: Approximately 900 lbs
