Fully Automatic Positive Displacement Bag Filler
(Specifications Page)

Fully Automatic Positive Displacement Bag Filler by Packaging Dynamics, Ltd. - Manufacturer of Automatic & Semi-Automatic Liquid fillers, Conveyors, Unscramblers, Accumulators, and Custom Designed Packaging machinery & nozzles for liquids.

Features
Fully-Automatic Control Package Positive Displacement Metering System Stainless Steel Frame & Conveyor Stainless Steel Contact Parts Stainless Steel Centrifugal Gear Pump	Polypropylene Supply tank Nema 4 Electrics Quick Change Rail & Nozzle Adjustment Air Powered Bag Fixture Bottle Filling

Benefits

High Speed Volume Production
High Accuracy Fill, No Wasted Product
Low Maintenance & Operating Cost
Designed With Common Parts For Easy & Quick Replacement.
Adaptable To Fit A Variety Of Different Bag or Bottle Sizes and Configurations.
Fast And Easy Clean Ups
High Efficiency Motors
Available in Gear Or Mass Flow Type

Options
Stainless steel tanks Splash guard Bottom fill nozzles Centering devices Sanitary connections	Explosion Proof Construction Drip Tray Stainless steel transfer plate Incase Filling

Specifications

Description
Container Size Range:	2.0 oz to 55 gallons drums
Nozzles Available:	1 to 12
Construction:	Stainless Steel

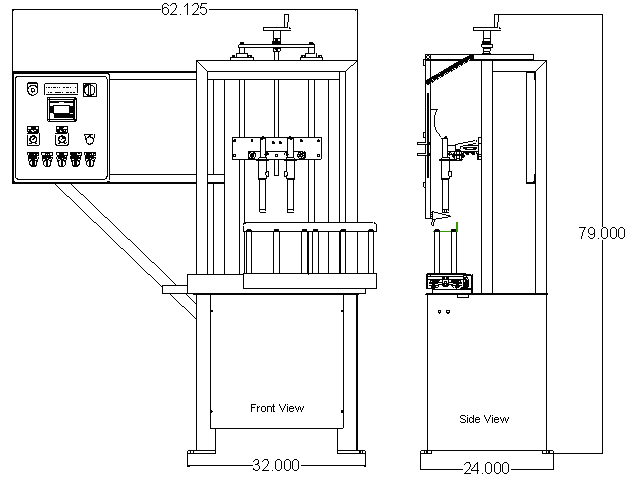

Overall Dimensions:	79�H x 29�W x 24�D (excluding supply tank)
Air Consumption:	2 to 6 scfm
Weight:	Approximately 500 lbs.
