Fully Automatic Mass Flow Liquid Filler
(Specifications Page)

Features
Fully-Automatic AB Control Package Micro Motion Coriolis Flow Meters Stainless Steel Frame & Conveyor Stainless Steel Contact Parts Stainless Steel Centrifugal Pump	0.5% Accuracy or Better Almost Any Nema Application 110 or 220 VAC Operation Quick change Rail & Nozzle adjustment Small to Drum Size Fills

Benefits

No Periodic Recalibration
Flow Meters are Non Intrusive
No Required Scheduled Maintenance
Direct Mass Measurement
Immune to Variations in Pressure or Temperature
Ideal for Clean in Place Applications
High Efficiency Drive Motors
Quick Disconnect Fittings
Easy Change Overs

Options
Stainless steel tanks Splash guard Bottom fill nozzles Centering devices Sanitary connections	Explosion Proof Construction 220v AC operation Drip Tray Stainless steel transfer plate Incase Filling

Specifications

Description
Container Size Range:	0.5 oz to 55 gallons drums
Nozzles Available:	1 to 12
Construction:	Stainless Steel

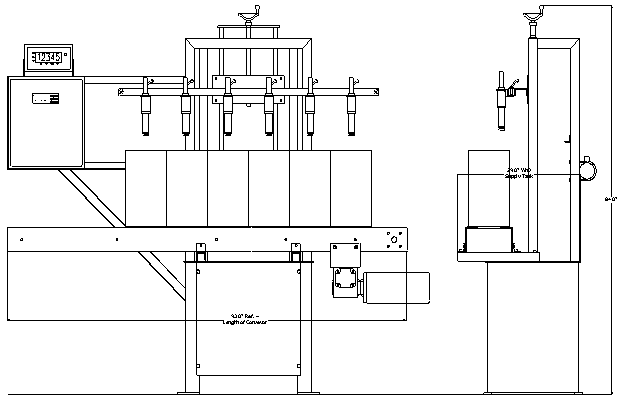

Overall Dimensions:	84�H x 29�W x 93�D (excluding supply tank)
Air Consumption:	2 to 6 scfm
Weight:	Approximately 700 lbs.
